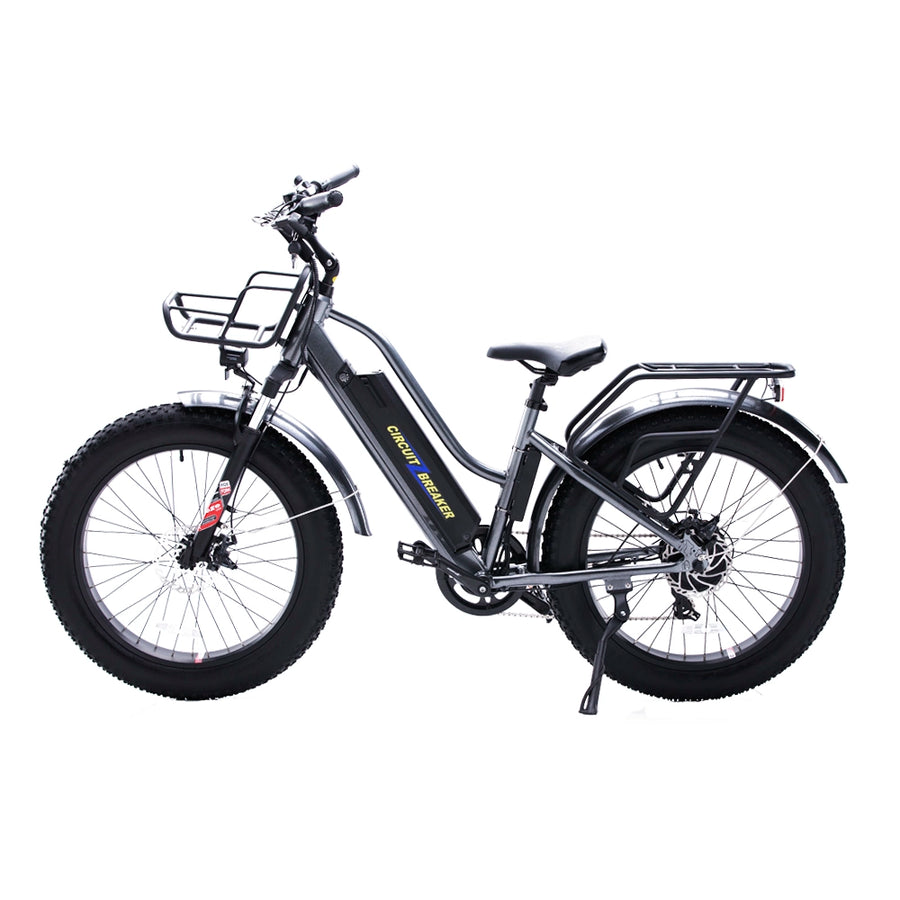

Circuit Breaker 24 Electric Bike
Circuit Breaker 24 Electric Bike

Circuit Breaker 24 Electric Bike

Color
$1,700.00
$2,200.00

Real power but an easy ride! CIRCUIT BREAKER with its 24″ wide tires offers stability whether on a rough trail or a paved road. Lots of heavy-duty features make this e-bike versatile and durable. No more need to test other e-bikes because the CIRCUIT BREAKER has all the features that you are looking for! (AVAILABLE IN BLUE ONLY)

Shipping Details

All Electric Bikes Over $2000 Qualify For Free Ground Shipping.

Electric System

MotorBafang 750W rear hub motor
ControllerLishui 25A
PAS Sensor12 Pole Cadence Sensor
Charger100V-240V 2A – Waterproof and quick connect
Battery48V 15Ah Lithium-ion battery
Battery Range20 miles
Charging Time4-6 hours
DisplayKingMeter SW Big LCD
ThrottleThumb throttle
Head light500 Lumen LED Headlight
Tail light80 Lumen LED Tail light.

Main Components

Frame6061 Aluminum alloy
BrakeNUTT disc brake
FenderAluminum alloy
ChainKMC, steel
Shift LeverShimano 7 speed
SuspensionMOZO suspension fork
RimAluminum alloy
SaddleDual Core Sport Comfort
PedalWellgo, Aluminum alloy
StemAluminum alloy
ForkMOZO suspension fork
Brake LeverWuxing with power cut-off
Gear shiftingARD-FT35AD, Shimano 7 speed
ShifterASLTX50R7CT, Shimano 7 speed
SpokeStainless steel
SprocketProwheel, Aluminum alloy
KickstandAluminum alloy
HandlebarAluminum alloy
Tools IncludedYes
Front basketNo
Rear RackAluminum alloy
BellIncluded

Capacity

oading Capacity130 kgs
NW.:31 kgs
Packing Size:160*28*78 cm
GW40 kgs

Sizing
TireChaoyang 26″*4.0, Quick release front wheel
Frame Size
Handlebar Height117 cm
Handlebar Reach
Seat Height81-104 cm
Standover Height
Total Length182 cm
Wheelbase115 cm
Seat Tube Length35 cm
Top Tube Length
Headtube
Chainstay152.4 cm
Handlebar Width66 cm
Crank Length17 cm
Seatpost Diameter3.04 cm
Max Tire Width10 cm

Disclaimer
***Parts may very with availability***
