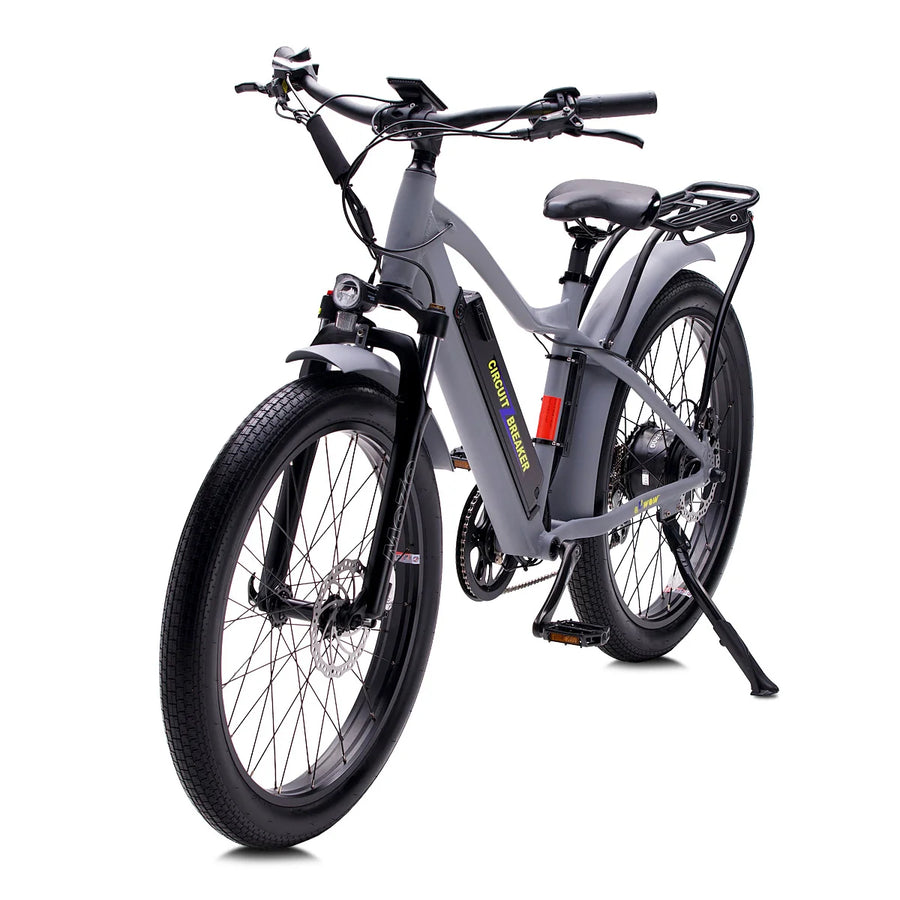

Circuit Breaker CTY Electric Bike

Color
Starting at $77/mo, see financing options during checkout.
$1,700.00

The “big guy” of OH WOW CYCLES e-bikes. The CIRCUIT BREAKER CTY is a bike built for those who are after adventure and high performance. This is OH WOW CYCLES’ flagship e-bike intended for all types of riding from smooth bike paths,  leisure rides through the neighborhood to the rough and worn roads of the city. The 3 inch tires help eat up the miles and cushion all the harsh bumps in the road.  You are assured of safety and reliability when you ride this e-bike. The CIRCUIT BREAKER CTY is what you need to add more fun and excitement to your riding experience!

Shipping Details

All Electric Bikes Over $2000 Qualify For Free Ground Shipping.

TECHNICAL SPECIFICATIONS

  • 48V 750W

    Bafang Hub Motor
  • Up to 20

    Miles Per Charge
  • 48V 15 AH

    Lithium-Ion Battery
  • 4-6 Hours

    Charging Time
  • 330 Lbs

    Payload Capacity

Electric System

MotorBafang 750W rear hub motor
ControllerLishui 25A
PAS Sensor0-5 levels
Charger100V-240V 2A – Waterproof and quick connect
Battery48V 15Ah Lithium-ion battery
Battery Range20 miles
Charging Time4-6 hours
DisplayKingMeter SW Big LCD
ThrottleThumb throttle
Head lightYes
TaillightYes

Main Components

Frame6061 Aluminum alloy
BrakeNUTT disc brake
FenderAluminum alloy
ChainKMC, steel
Shift LeverShimano 7 speed
SuspensionMOZO suspension fork
RimAluminum alloy
SaddleChiFan leather
PedalWellgo, Aluminum alloy
StemAluminum alloy
ForkMOZO suspension fork
Brake LeverWuxing with power cut-off
Gear shiftingARD-FT35AD, Shimano 7 speed
ShifterASLTX50R7CT, Shimano 7 speed
SpokeStainless steel
SprocketProwheel, Aluminum alloy
KickstandAluminum alloy
HandlebarAluminum alloy
Tools IncludedYes
Front basketNo
Rear RackAluminum alloy
BellIncluded

Capacity

Range20 miles
Loading Capacity130 kgs
NW.:31 kgs
Packing Size:160*28*78 cm
GW40 kgs

Sizing
TireChaoyang 26 x 3.0 road tires , Quick release front wheel
Frame Size
Handlebar Height117 cm
Handlebar Reach
Seat Height81-104 cm
Standover Height
Total Length182 cm
Wheelbase115 cm
Seat Tube Length35 cm
Top Tube Length
Headtube
Chainstay152.4 cm
Handlebar Width66 cm
Crank Length17 cm
Seatpost Diameter3.04 cm
Max Tire Width10 cm

Disclaimer
***Parts may vary with availability***
