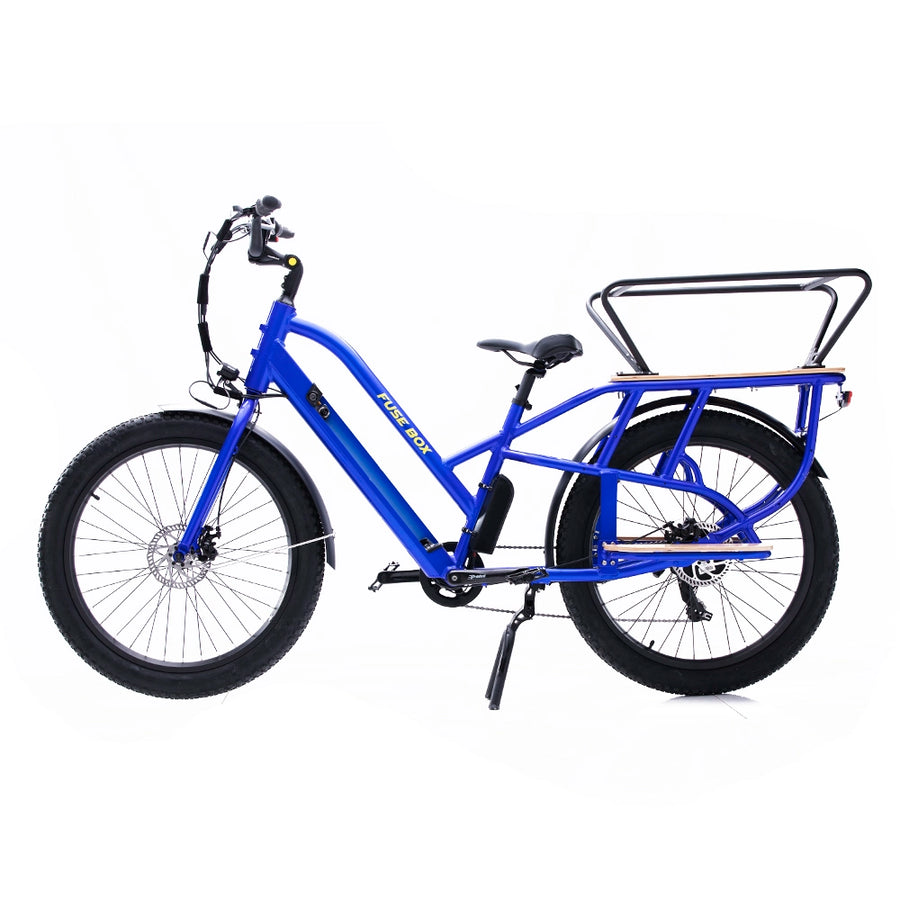

Fuse Box Electric Bike

Color
$2,200.00

The FUSE BOX is able to comfortably carry two kids or packages up to 150 kg at its rear rack.  Safety and stability are assured while biking with kids or cargo.  The e-bike is able to handle those uphill rides and acceleration.  The FUSE BOX is an amazing e-bike for parents and children to share riding adventures!

Shipping Details

All Electric Bikes Over $2000 Qualify For Free Ground Shipping.

TECHNICAL SPECIFICATIONS

  • 48V 750W

    ENA Hub Motor
  • Up to 20

    Miles Per Charge
  • 48V 11.6 AH

    Lithium-Ion LG Battery
  • 6-8 Hours

    Charging Time
  • 330 Lbs

    Payload Capacity

Electric System

Motor48V/750W ENA hub motor installed in rear wheel
ControllerLishui Intelligent Controller
PAS Sensor1:1 Intelligent Pedal Assistant Speed Sensor
Charger100-240V AC, 2A Smart Charger
BatteryLithium-Ion, 48V/11.6Ah LG Battery
Battery Range20 Miles
Charging Time6-8 hours
DisplayLCD display
ThrottleHalf-twist Throttle
HeadlightYes
TaillightYes
Disc booster

Main Components

FrameAluminum Alloy 6061
BrakeTektro Mechanical Disc Brake, 160mm disc
FenderYes
ChainKMC
Shift LeverShimano 7 Speed TOURNEY SL-TX50-7R
Suspension
RimAlloy, Double Wall, 39mm, 36Hole
SaddleComfortable Soft Seat
PedalWellgo Alloy Black
StemAlloy, EXT:85MM , 0-60° Rise,Adjustable angle, high:41mm
ForkRigid Fork
Brake LeverWuxing Brake Lever
Gear shifting7 Speed Freewheel With 14-28T Range
ShifterShimano 7 Speed TOURNEY SL-TX50-7R
SpokeStainless Steel
SprocketDouble Plastic Black, 170mm Length, 36T
KickstandAlloy, Double Leg Kickstand
HandlebarAlloy Black, 700mm
Tools IncludedNo
Front basketYES(front&Rear basket kit optional)
Rear RackYES(front&Rear basket kit optional)
BellNo


Capacity

Range30-40 miles
Loading Capacity150kg
NW.:35kg
Packing Size:(cm) 164 L x 36 W x 95H
GW45kg

Sizing
Tire26”x 3.0” CST TiresFrame Size47.7cmHandlebar Height11.7cmHandlebar Reach40.7cmSeat Height80/98cmStandover Height60cmTotal Length199cmWheelbase128cmSeat Tube Length45.7cmTop Tube Length68cmHeadtube22cmChainstay Handlebar Width70cmCrank Length17cmSeatpost Diameter3.04cmMax Tire Width7.5cm
Disclaimer
***Parts may vary with availability***
