TECHNICAL SPECIFICATIONS

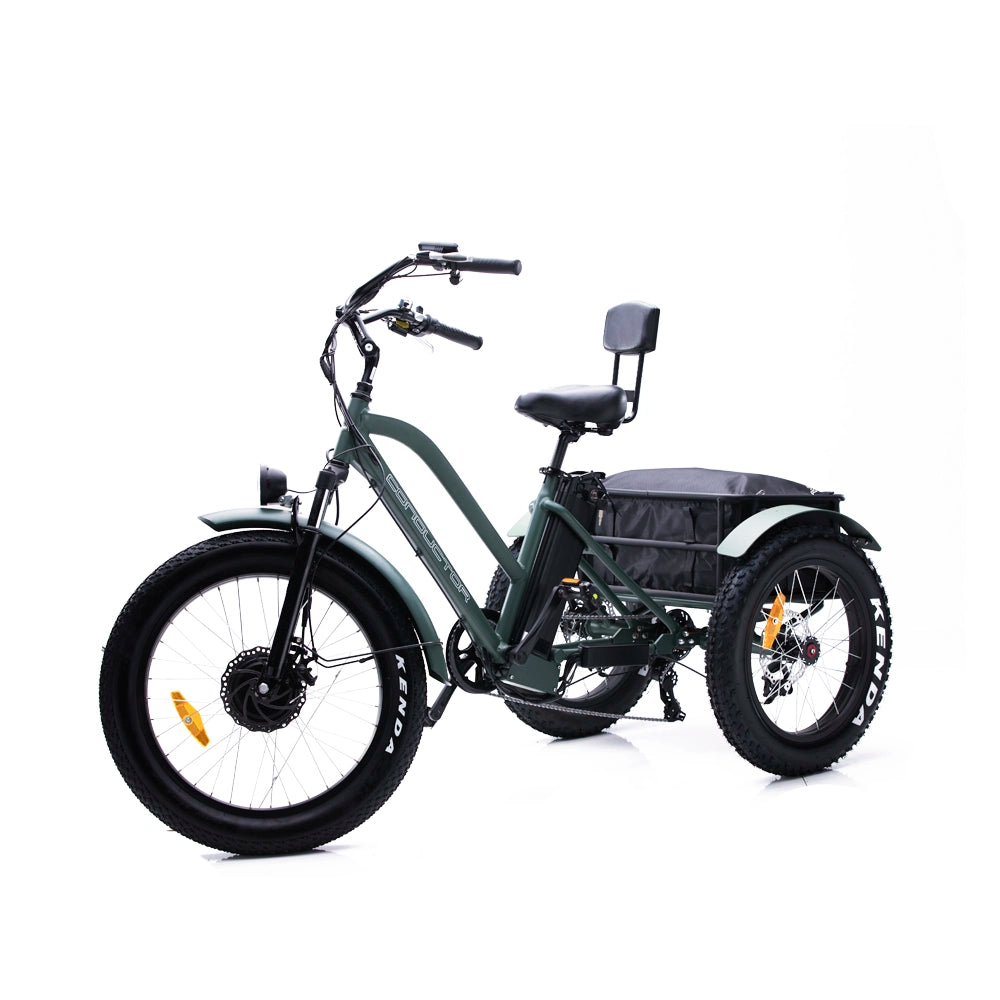

Conductor 750 carries groceries, supplies, and more.
Speed Differential
Our trikes come equipped with advanced shift differentials that provide the power to the rear wheels to turn at varying speeds, as needed during turns.
Large Front Light
Illuminate your path and ride with confidence with the 500 Lumen LED headlight that comes equipped with our trikes. It's powered from the trike's primary battery.
Smoother Stops
With front and rear disc brakes, you'll have ultimate control in the city's stop-and-go traffic. Say goodbye to inconsistent mechanical brakes and upgrade to our smooth and responsive hydraulic system. Enjoy the ease of maintenance and long-lasting performance.
Rack it up
Carry more cargo using the included rear rack.
Electric System
| Motor | 48V 750W |
| Controller | 48V 20A Intelligent Controller |
| PAS Sensor | 1:1 intelligent pedal assisted system |
| Charger | 48v 2A, 110-240V applied |
| Battery | 48v 15Ah lithium battery |
| Battery Range | - |
| Charging Time | 7 hours |
| Display | LCD display with 5 PAS levels |
| Throttle | Thumb Throttle |
| Head light | LED |
| Taillight | LED |
| Disc booster | Mechanical Disc Brakes |
Main Components
| Frame | Alu alloy 6061 |
| Brake | Tektro break lever |
| Fender | front and rear fenders alloy |
| Chain | anti-rust chain |
| Shift Lever | Shimano Tourney 6 speeds |
| Suspension | Mozo suspension fork |
| Rim | Double Wall Rim |
| Saddle | PU |
| Pedal | WELLGO |
| Stem | |
| Fork | suspension front fork |
| Brake Lever | WUXING |
| Gear shifting | Shimano 6-speed |
| Shifter | Shimano 6-speed |
| Spoke | Stainless Steel |
| Sprocket | steel |
| Kickstand | Alu alloy |
| Handlebar | Alloy |
| Tools Included | Spanner, inner hexagon and screw driver |
| Front basket | NA |
| Rear Rack | NA |
| Bell | Included |
Capacity
| Suitable for riders: | 5’5 – 6’3 |
| Loading Capacity | Rider: 450 lbs Cargo: 50 lbs |
| NW.： | 90 lbs |
| Packing Size: | 116*76*83cm |
| GW |
Sizing
| Tire | Front 24inch, Rear 2*20inch |
| Frame Size | – |
| Handlebar Height | 180mm |
| Handlebar Reach | – |
| Seat Height | – |
| Standover Height | – |
| Total Length | 1920mm |
| Wheelbase | – |
| Seat Tube Length | 350mm |
| Top Tube Length | – |
| Headtube | – |
| Chainstay | – |
| Handlebar Width | 680mm |
| Crank Length | 170mm |
| Seatpost Diameter | 27.2 |
| Max Tire Width | 40″ |
Disclaimer
***Parts may very with availability***
